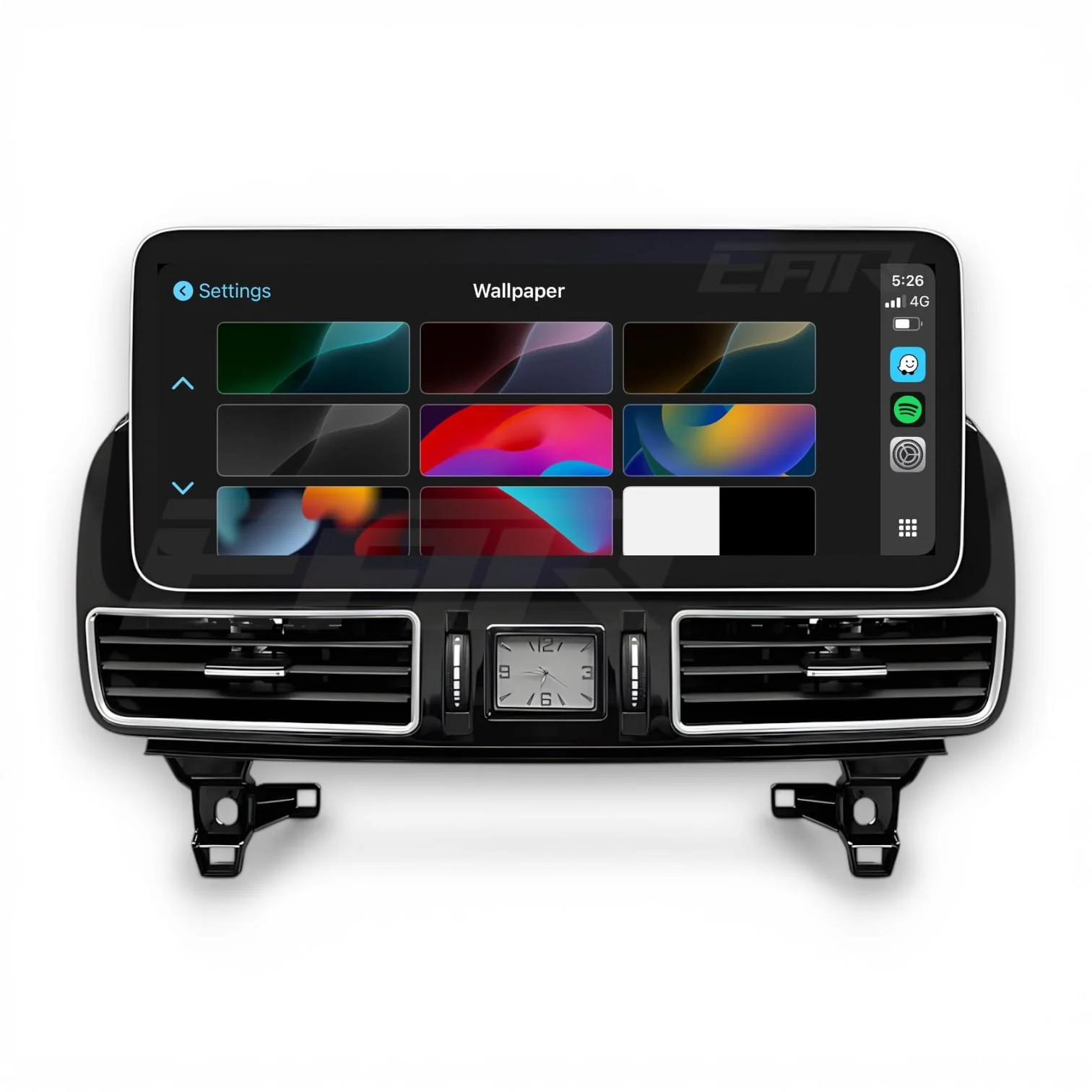

Mercedes-Benz GL / ML / GLE / GLS Class (X166) 12.3″ Linux CarPlay & Android Touchscreen Display | 2011 – 2019

This OEM+ multimedia touchscreen upgrade is designed for Mercedes-Benz GL, ML, GLE, and GLS-Class models on the X166 platform. Powered by a fast and stable Linux operating system, it adds Wireless Apple CarPlay and Android Auto while fully retaining the original Mercedes-Benz interface, controls, audio system, and vehicle functionality for a seamless factory-style experience.

This system features a 12.3″ ultra-thin bezel display, delivering a modern, edge-to-edge appearance that significantly enhances the interior while maintaining an OEM-inspired finish.

The upgrade includes a redesigned mounting frame with integrated air vent relocation, allowing airflow to be redirected beneath the new display without affecting air conditioning performance or cabin airflow.

Features

Feature	Details
Operating System	Linux-based system for fast, stable performance
Connectivity	Wireless & wired Apple CarPlay and Android Auto
Touchscreen	High-response capacitive touchscreen
Display Size	12.3″ ultra-thin bezel display
Display Quality	1920 × 720 IPS panel with wide viewing angles
Brightness Control	Automatic brightness adjustment
Factory Integration	Retains original Mercedes-Benz interface, cameras, sensors, and vehicle menus
Controls	Fully compatible with steering wheel controls and factory control interfaces
Audio Integration	Uses original Mercedes-Benz Bluetooth, speakers, and microphone. AUX cable is included and optional.
Interface Switching	Instant switching between factory system and CarPlay / Android Auto
Camera Support	Compatible with factory and aftermarket reverse, front, 180° and 360° cameras
Mirroring	Supports AirPlay and wireless / wired screen mirroring
Sound Adjustment	Built-in EQ adjustment
Phone Connectivity	Supports multiple phone connections
Vent Relocation Design	Integrated frame re-routes air vents beneath the display without affecting airflow or AC performance

Fitment

Make	Model	Chassis Code	Year	System Version
Mercedes-Benz	GL-Class / GLS-Class	X166	2012 – 2019	NTG 4.5 / NTG 5.0
Mercedes-Benz	ML-Class / GLE-Class	W166	2011 – 2019	NTG 4.5 / NTG 5.0

What’s Included

Item	Description
Display Unit	12.3″ Linux multimedia touchscreen display
Mounting Frame	Custom frame with integrated air vent relocation design
Power Harness	Vehicle-specific plug & play wiring harness
USB Cable	USB connection for media and updates
AUX Cable	AUX audio cable (installation optional depending on vehicle configuration)
Mounting Hardware	All required brackets and fittings

Specifications

Specification	Details
Operating System	Linux
Display Resolution	1920 × 720 IPS
Screen Size	12.3″
Startup Time	Approx. 3–5 seconds
Connectivity	Wireless & wired CarPlay / Android Auto
Audio Output	Factory Mercedes-Benz Bluetooth or AUX

Difference Between Linux & Android

Feature	Linux System	Android System
Startup Time	3–5 seconds	8–12 seconds
Audio Integration	Uses original Mercedes-Benz Bluetooth and microphone, and supports AUX	Dual Bluetooth support, and supports AUX
App Access	CarPlay & Android Auto apps	Google Play Store (YouTube, Netflix, etc.)
Connectivity	Wireless & wired CarPlay / Android Auto	Wireless & wired CarPlay / Android Auto
Included Hardware	Power, USB, AUX cables	Power, USB, AUX, GPS antenna, 4G antenna, microphone
Advanced Options	OEM-focused simplicity and stability	SIM card support, built-in WiFi, RAM/ROM options, digital radio upgrade
